300L-500L stainless steel or red copper beer brewing systems for
microbrewery CE and ISO approved
Brief introduction of the beer making machine:
We could supply different models of beer making machine, capacity
from 200L-3000L/batch for commercial use. Beside good quality
equipment, we will also supply sound pre-sales and after sales
service to customer, such as installation, teaching brewing, etc.
Configuration of regular models:
| Name of system | Specification scope of the system |
| Brewhouse System | With capacity 200L/batch-3000L/batch |
| Fermentation System | With cooling jacket and insulation, 6 fermenters with volume
200L-3000L/tank |
| Chilling System | 2 pieces of refrigeration machine |
| CIP Cleaning System | Stainless steel trolley with one or two tanks |
| Control system | Semi-automatic control with digital meters or full-automatic
control with PLC |
| Equipment parts | Full set of supporting parts |
Specification for reference:
1. Request for the electricity: 3 phase 380V or 220V, 50/60 Hz
2. Power: accordance with the capacity or heating way of brewhouse
3. Welding: 100% TIG welding with pure argon gas shield
4. Polish: Grinding polish or mirror polish, polishing up to Ra
0.4um;
5. Accessories: full set of accessories and some wearing parts
could be supplied more for spare.

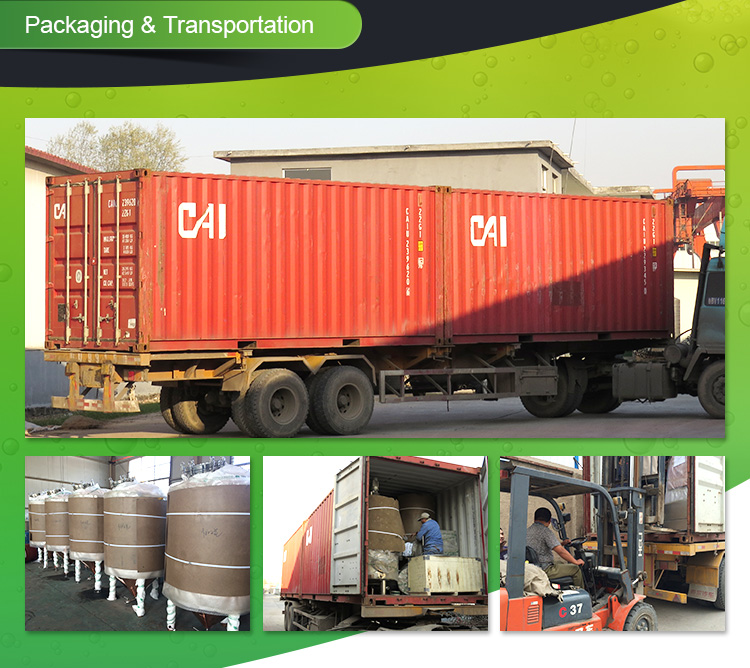

Package and Delivery
- Package: bubble plastic film inside and Kraft paper outside, fixed
with iron wires in the container
- Delivery: by sea in container. We could be solely responsible for
the delivery for you.
Installation and using
Our engineer could go abroad to guide installation and teach how to
brew. And some brewing recipes could be supplied.
Service we will supply for the craft beer production line
Professional Pre-sale service
1) Free layout design on the brewery;
2) Budget assessment service;
3) Free warm reception of customer's visit.
Sound After-sale service
1) Engineers guiding installation and training brewing overseas;
2) 7×24 hours technical support by phone, E-mail, Skype or any
other ways;
3) Raw materials of brewing supplying.
For more information, please feel free to contact us at
miya@cgbrew.com, we will give a reply at the first time.
